Back-Up Light Switch

WARNING: This page is about a different variant/trim than selected.

When the transmission is in reverse, the reverse shift piece pushes the steel ball of the back-up light switch and turns the switch ON. The vehicle has an Auto Idle Stop system, and the signal from the back-up light switch is one of the conditions for auto idle stop.

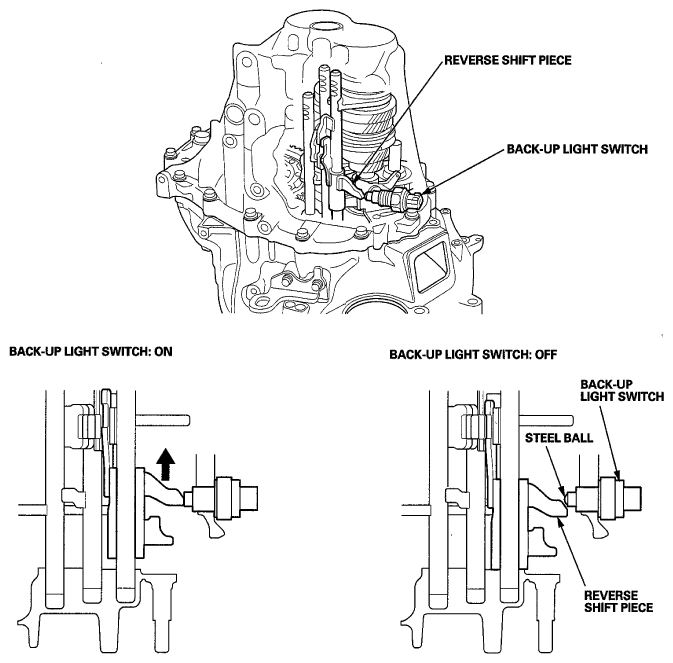

Fig 1: Identifying Back-Up Light Switch And Reverse Shift Piece
G06950662Courtesy of AMERICAN HONDA MOTOR CO., INC.
