Block Bore Code Location

Letters have been stamped on the end of the engine block as a code for the size of each of the five main journal bores.

Use them, and the numbers or bars stamped on the crankshaft (codes for main journal size), to choose the correct bearings. If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

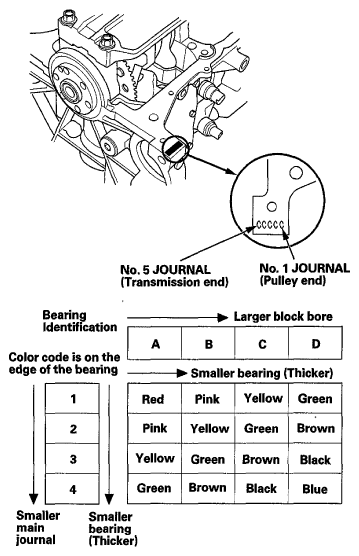

Fig 1: Identifying Block Bore Code
G06949500Courtesy of AMERICAN HONDA MOTOR CO., INC.
