Navigation Function: Notes

The navigation system is composed of the navigation unit, the ECM/PCM (vehicle speed pulse), the GPS antenna, microphone, the voice control switch, audio unit, the interface dial, the HandsFreeLink control unit, the rearview camera, the navigation display unit, and the audio-HVAC subdisplay unit.

Function Diagram

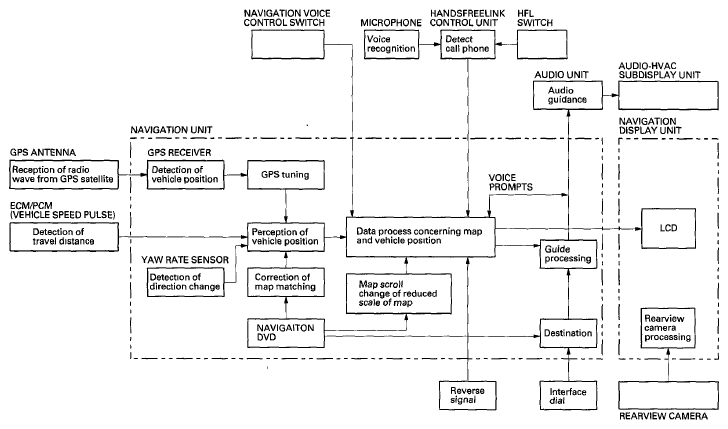

Fig 1: Navigation Function - Function Diagram
G07345222Courtesy of AMERICAN HONDA MOTOR CO., INC.
