Back-Up Sensor Control Unit Connector End View (Honda Accessory) (View 302)
Back-Up Sensor Control Unit Connector End View (Honda Accessory) (View 302)
WHT
Behind left side of rear seat
On back-up sensor harness (Honda Accessory)

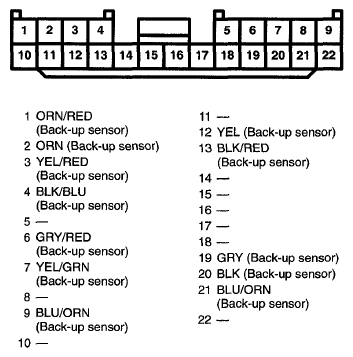

Fig 1: Back-Up Sensor Control Unit Connector Terminal (Honda Accessory) (View 302)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
