SRS Unit Connector End View (View 286)

YEL
Under middle of dash
Connector A
- On dashboard wire harness (right branch)
Fig 1: SRS Unit Connector Terminal (View 286)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- On floor wire harness (right branch)

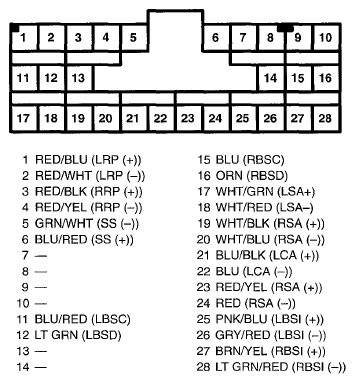

Fig 2: Connector B Terminal (View 286)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
