Component Location Index

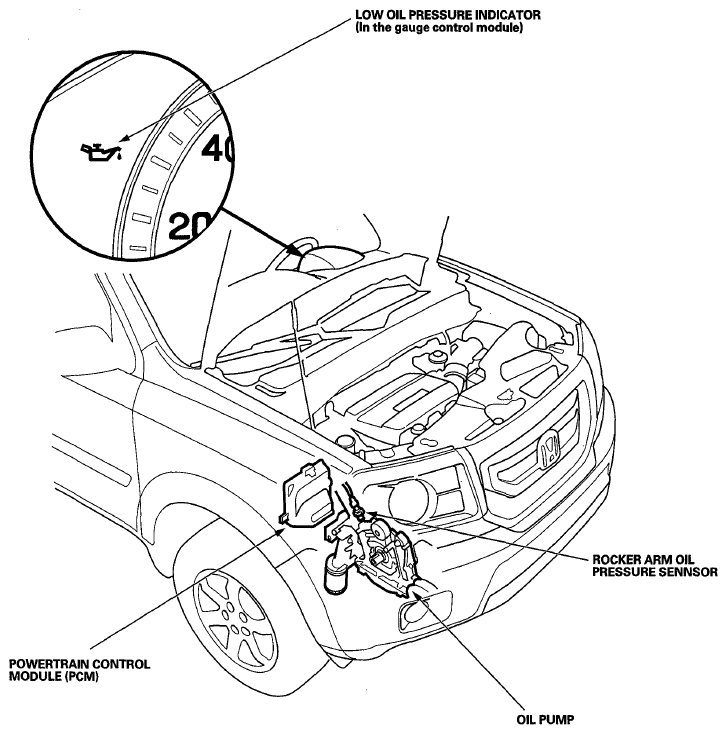

Fig 1: Identifying Engine Lubrication Replacement Components (1 Of 2)
G05961132Courtesy of AMERICAN HONDA MOTOR CO., INC.

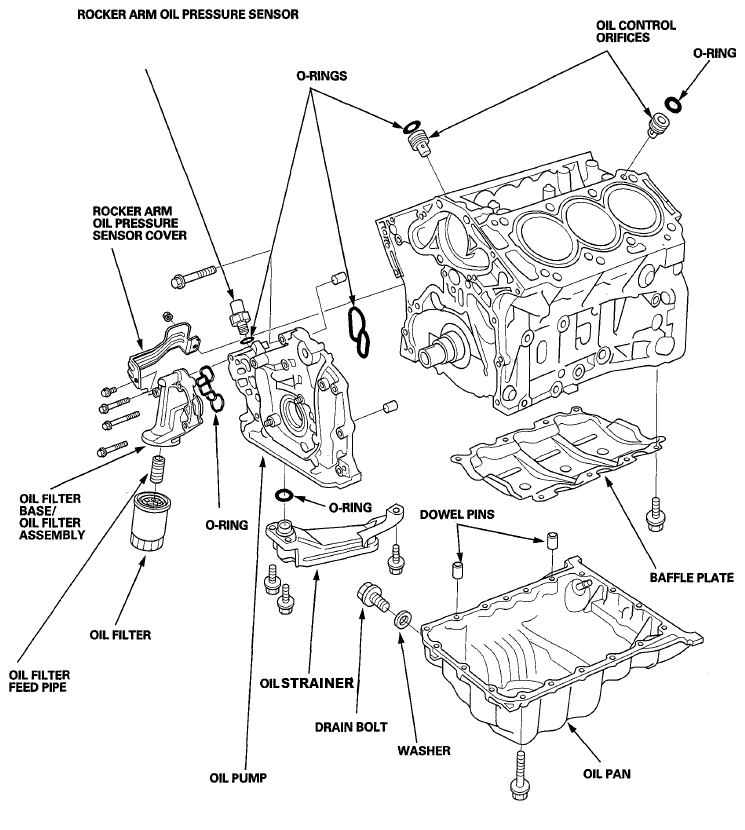

Fig 2: Identifying Engine Lubrication Replacement Components (2 Of 2)
G05961133Courtesy of AMERICAN HONDA MOTOR CO., INC.
