Component Location Index

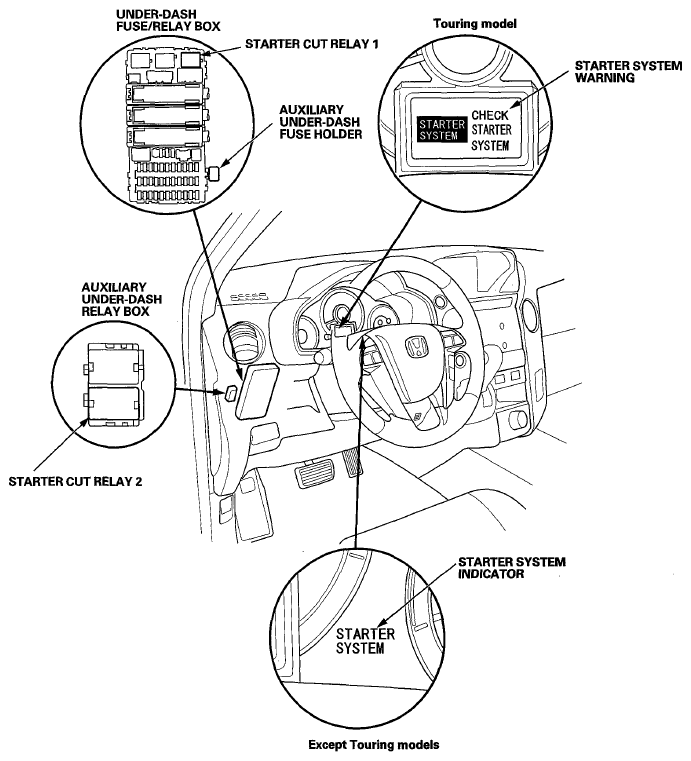

Fig 1: Identifying Starting System Replacement Components (1 Of 2)
G05960682Courtesy of AMERICAN HONDA MOTOR CO., INC.

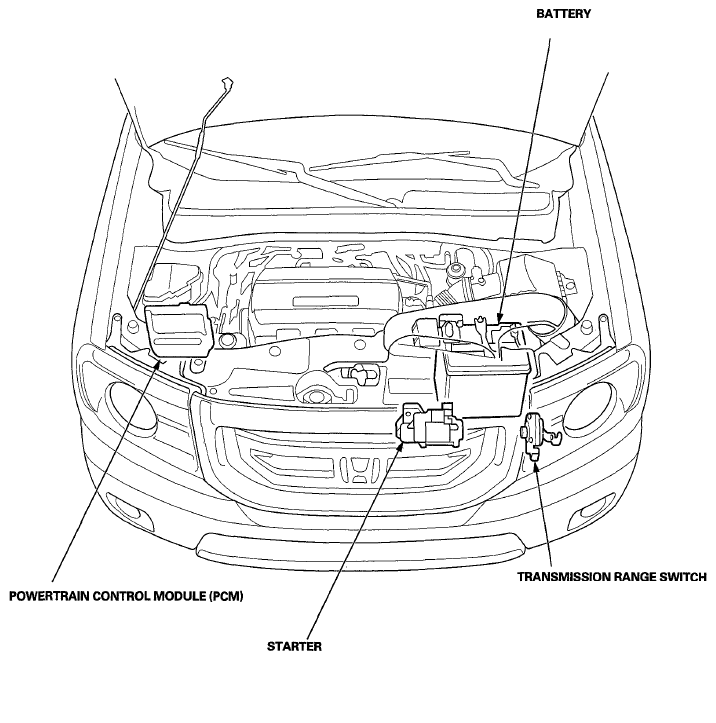

Fig 2: Identifying Starting System Replacement Components (2 Of 2)
G05960683Courtesy of AMERICAN HONDA MOTOR CO., INC.
