SRS Unit Connector End View (View 410)

YEL
Under Middle of Dash
Connector A
- On Dashboard Wire Harness (View of Middle to Passenger's Side)

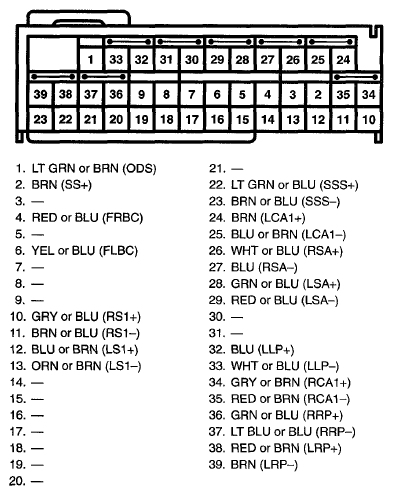

Fig 1: SRS Unit Connector Terminals - Connector A (View 410)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- On Right Side Wire Harness (Right Front Branch)

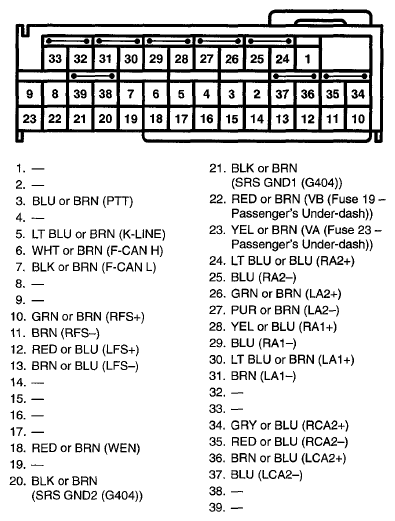

Fig 2: SRS Unit Connector Terminals - Connector B (View 410)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
