Rear Controller and Screen Connector End View (RES Normal) (View 351)

• GRY
• Center of Roof
• On Roof Wire Harness

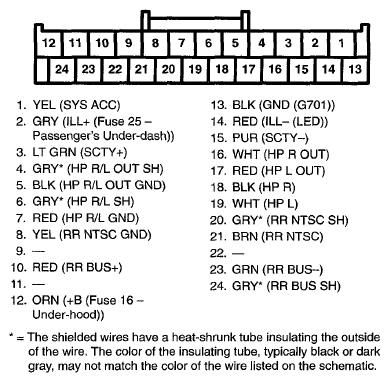

Fig 1: Rear Controller And Screen (RES Normal) Connector Terminals (View 351)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
