Power Window Master Switch Connector End View (View 362)

• GRY
• Driver's Door
• On Driver's Door Wire Harness

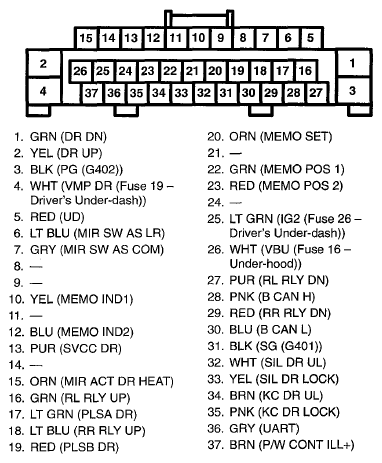

Fig 1: Power Window Master Switch Connector Terminals (View 362)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
