Power Mirror Switch Connector End View (View 319)
Power Mirror Switch Connector End View (View 319)
WHT
Driver's Door
On Driver's Door Wire Harness

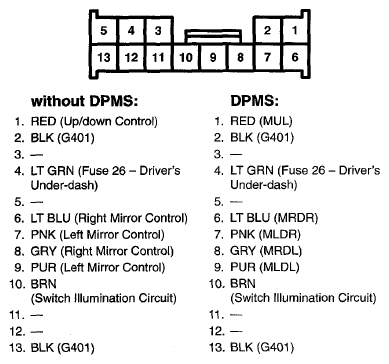

Fig 1: Power Mirror Switch Connector Terminals (View 319)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
