PCM Connector End View (View 396)

Right Side of Engine Compartment
Connector A
- BLK/WHT
- On Right Engine Compartment Wire Harness (Engine Compartment Branch)

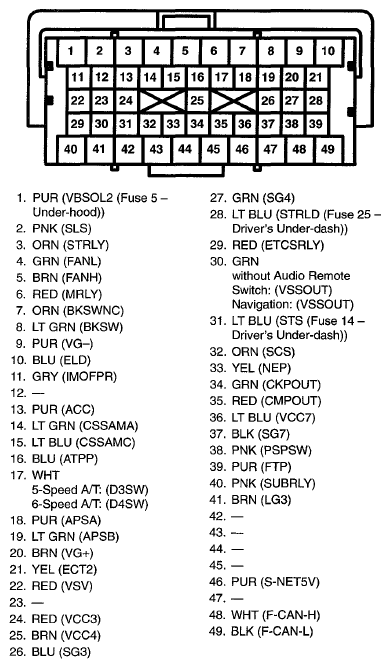

Fig 1: PCM Connector Terminals - Connector A (View 396)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- - BLK/GRY
- Engine Wire Harness (Engine Section)

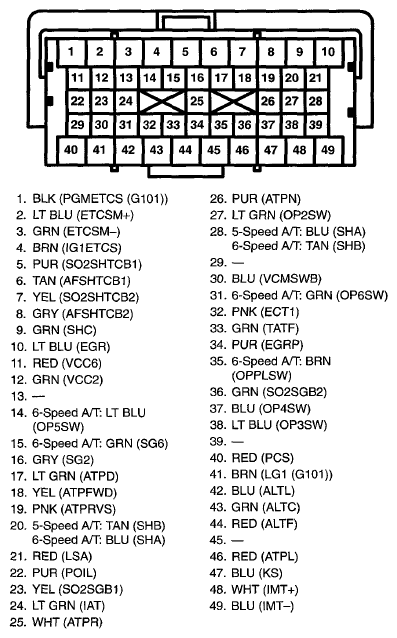

Fig 2: PCM Connector Terminals - Connector B (View 396)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C
- BLK/GRN
- Engine Wire Harness (Engine Section)

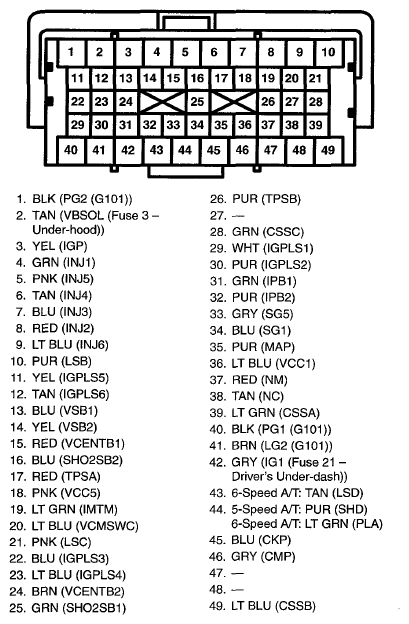

Fig 3: PCM Connector Terminals - Connector C (View 396)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
