Driver's Under-Dash Fuse/Relay Box Connector End View (View 389)

Under Left Side of Dash
Connector A (Ambient Light (Honda Accessory))
- N/A
- On Ambient Light Harness (Honda Accessory)
Fig 1: Drivers Under-Dash Fuse/Relay Box Connector Terminals - Connector A (View 389)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- LT GRN
- On Dashboard Wire Harness (View of Driver's Side)

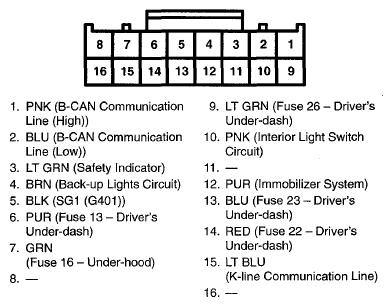

Fig 2: Drivers Under-Dash Fuse/Relay Box Connector Terminals - Connector B (View 389)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector E
- LT GRN
- On Left Side Wire Harness (Left Front Branch)

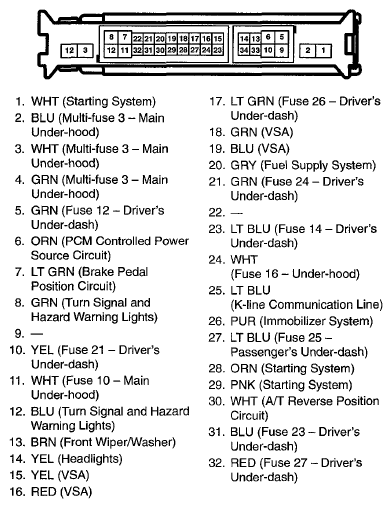

Fig 3: Drivers Under-Dash Fuse/Relay Box Connector Terminals - Connector E (View 389)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector F
- BLU/GRN
- On Left Engine Compartment Wire Harness (Dashboard Branch)

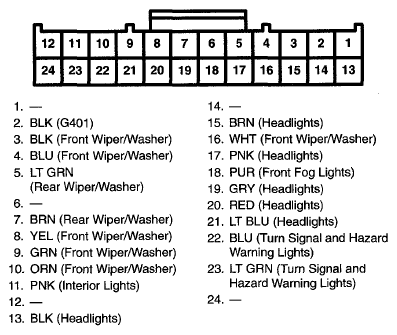

Fig 4: Drivers Under-Dash Fuse/Relay Box Connector Terminals - Connector F (View 389)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector G
- LT GRN
- On Dashboard Wire Harness (View of Driver's Side)

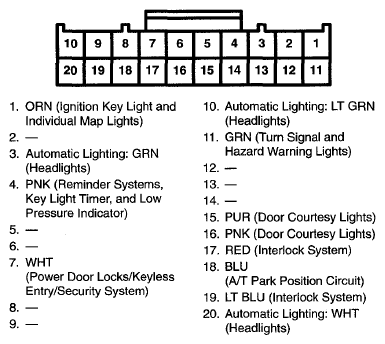

Fig 5: Drivers Under-Dash Fuse/Relay Box Connector Terminals - Connector G (View 389)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector H
- LT GRN
- On Dashboard Wire Harness (View of Driver's Side)

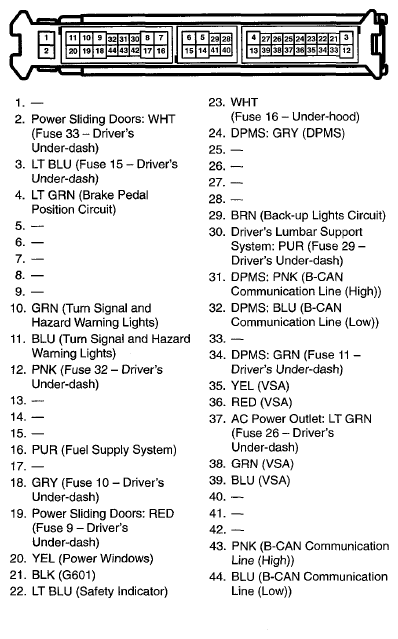

Fig 6: Drivers Under-Dash Fuse/Relay Box Connector Terminals - Connector H (View 389)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector K
- LT GRN
- On Dashboard Wire Harness (View of Driver's Side)
Fig 7: Drivers Under-Dash Fuse/Relay Box Connector Terminals - Connector K (View 389)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector M
- LT GRN
- On Dashboard Wire Harness (View of Driver's Side)
Fig 8: Drivers Under-Dash Fuse/Relay Box Connector Terminals - Connector M (View 389)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector P (Driver's MICU)
- LT GRN
- On Dashboard Wire Harness (View of Driver's Side)
Fig 9: Drivers Under-Dash Fuse/Relay Box Connector Terminals - Connector P Drivers MICU (View 389)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector Q (Driver's MICU)
- LT GRN
- On Dashboard Wire Harness (View of Driver's Side)
Fig 10: Drivers Under-Dash Fuse/Relay Box Connector Terminals - Connector Q Drivers MICU (View 389)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
