Audio Display-USB Adapter Control Unit Connector End View (USB Adapter Without Navigation) (View 381)
- GRY
- Middle of Dash
Connector A
- On Audio Wire Harness

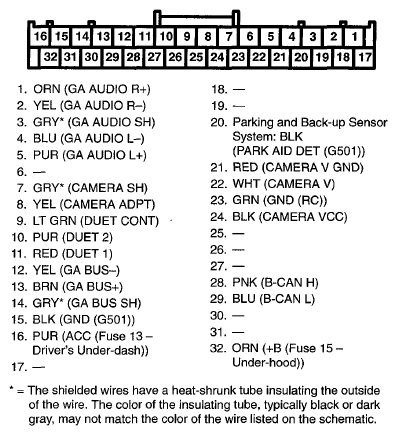

Fig 1: Audio Display-USB Adapter Control Unit (Without Navigation) Connector Terminals - Connector A (View 381)Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
Connector B
- On USB Main Harness
