DTC P0A15: Front Engine Mount Actuator Control Circuit Low Current
>>
Notes
DTC P0A15: Front Engine Mount Actuator Control Circuit Low Current: Notes

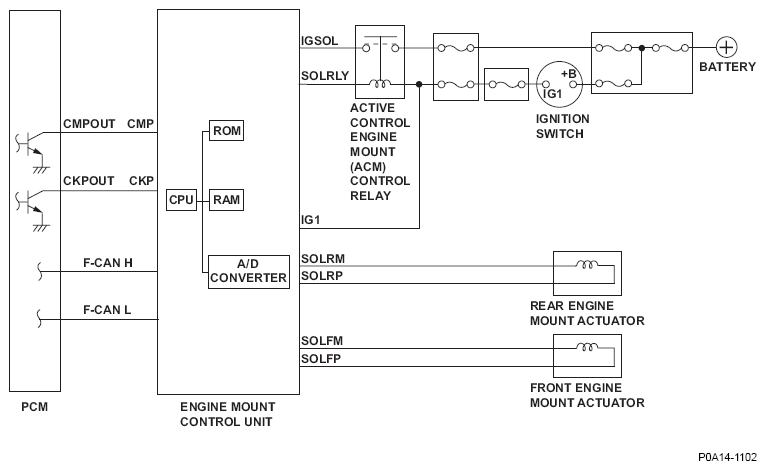

Fig 1: Front Engine Mount Actuator Control - Circuit Diagram
