GA-NET Bus (USB Adapter without Navigation)

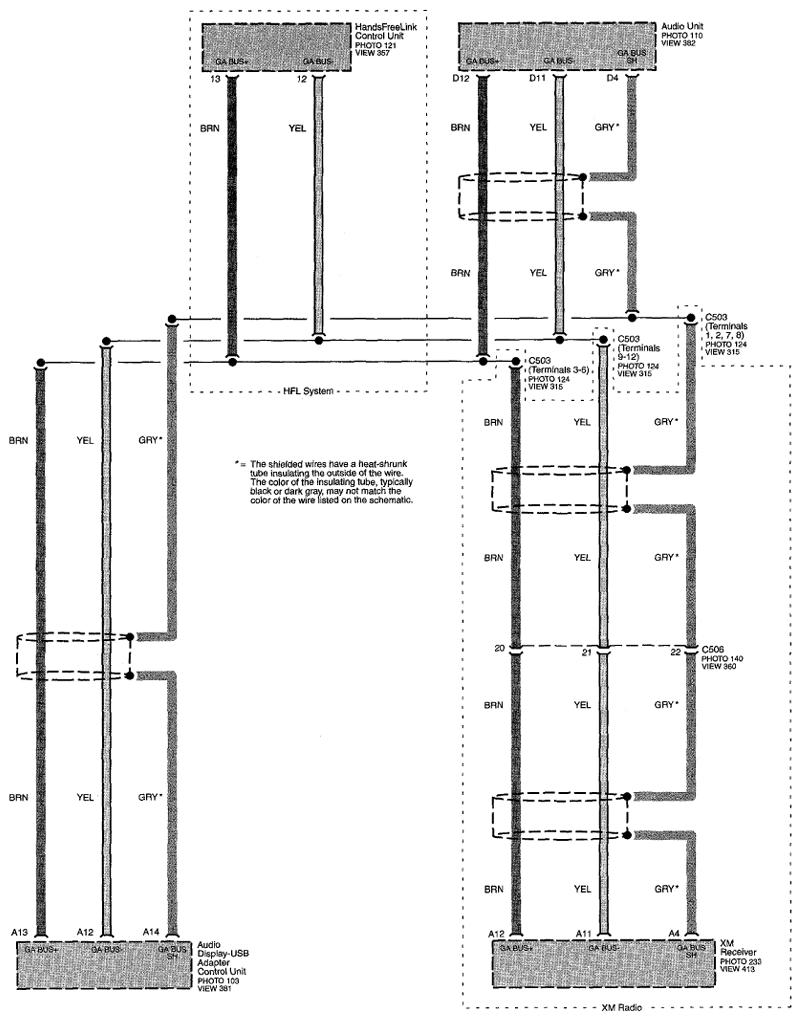

Fig 1: GA-NET Bus (USB Adapter Without Navigation) Circuit Diagram (Page 50-14)
