Wiper/Washer Switch Connector End View (View 288)
Wiper/Washer Switch Connector End View (View 288)
BLK/WHT
In Steering Column Cover
On Dashboard Wire Harness (View of Left Side)

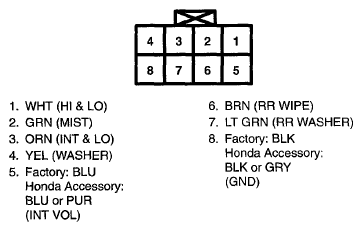

Fig 1: Wiper/Washer Switch Connector Terminals (View 288)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
