C603 Connector End View (View 216)
C603 Connector End View (View 216)
YEL
Under Left Side of Floor
Connects Left Side Wire Harness (Left Front Branch) to Right Side Wire Harness (Right Front Branch)

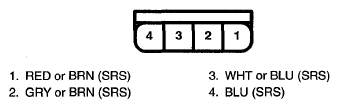

Fig 1: C603 Connector Terminals (View 216)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
