C507 Connector End View (View 367)

WHT
Behind Right Kick Panel
Connects Audio Wire Harness to Right Side Wire Harness (Right Front Branch)
without Roof Speaker:

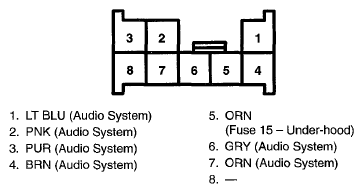

Fig 1: C507 Connector Terminals - Without Roof Speaker (View 367)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Roof Speaker:

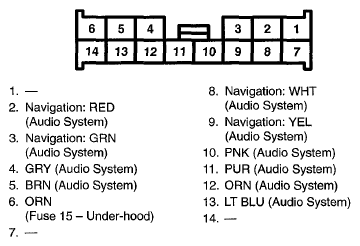

Fig 2: C507 Connector Terminals - Roof Speaker (View 367)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
