MCM Connector End View (View 221)

Connector A

• GRY
• On PCU Wire Harness

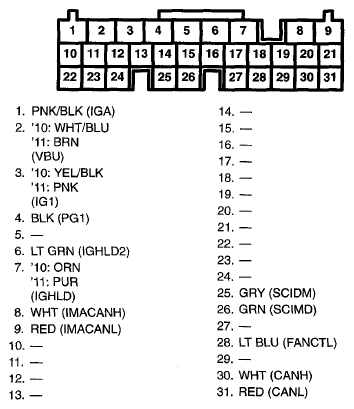

Fig 1: MCM Connector Terminal - Connector A (View 221)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

• WHT
• On PCU Wire Harness

Fig 2: MCM Connector Terminal - Connector B (View 221)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C

• BLK
• On PCU Wire Harness

Fig 3: MCM Connector Terminal - Connector C (View 221)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector D (Not Used)

Connector E

• WHT
• On Junction Board Wire Harness

Fig 4: MCM Connector Terminal - Connector E (View 221)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
