C702 Connector End View (View 208)

WHT
Under IPU Lid
Connects IPU Wire Harness to PCU Wire Harness

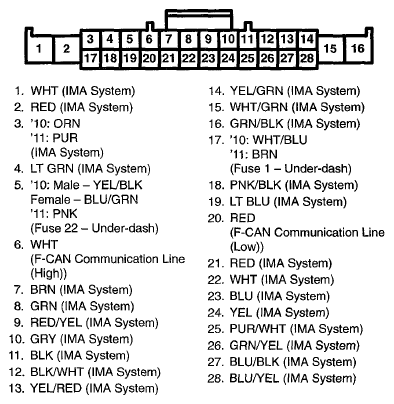

Fig 1: C702 Connector Terminal (View 208)

G07760794

Courtesy of AMERICAN HONDA MOTOR CO., INC.
