C411 Connector End View (View 199)

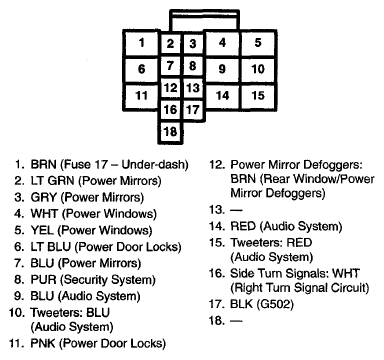

Fig 1: C411 Connector Terminal (View 199)
G07760785Courtesy of AMERICAN HONDA MOTOR CO., INC.
