C407 Connector End View (View 204)

WHT
Under Center Console
Connects Dashboard Wire Harness to Floor Wire Harness

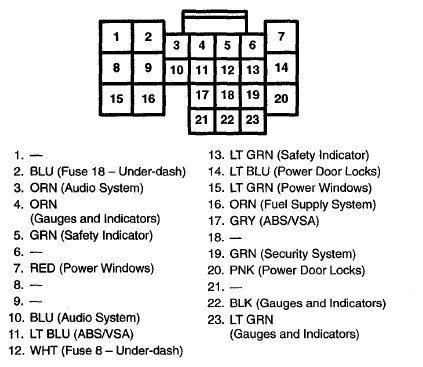

Fig 1: C407 Connector Terminal (View 204)

G07760790

Courtesy of AMERICAN HONDA MOTOR CO., INC.
