C201 Connector End View (View 195)

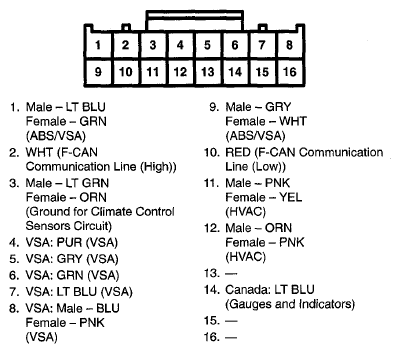

Fig 1: C201 Connector Terminal (View 195)
G07760781Courtesy of AMERICAN HONDA MOTOR CO., INC.
