Circuit Diagram

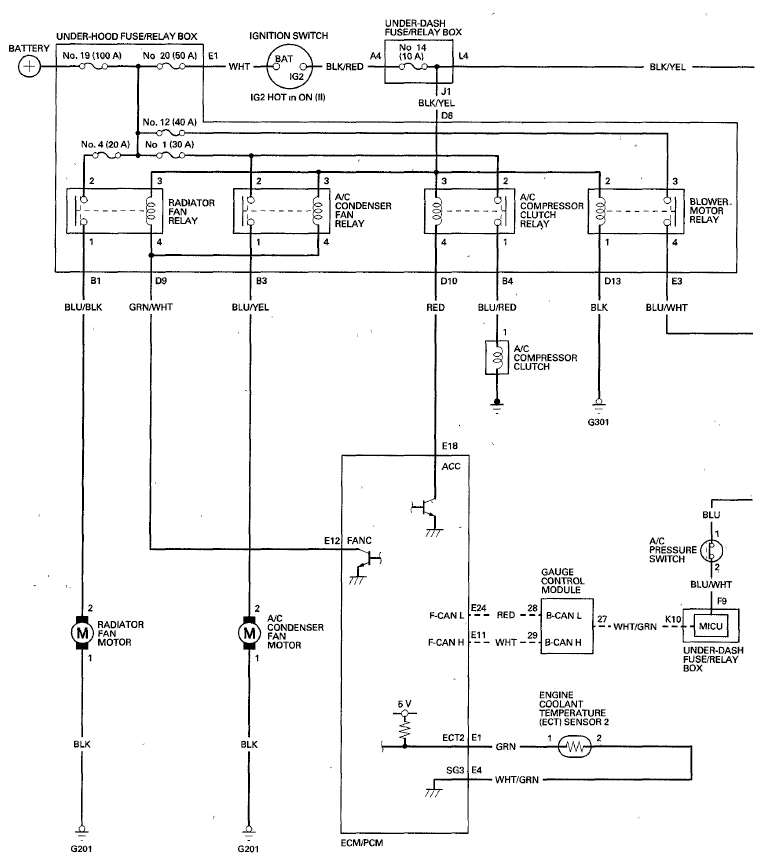

Fig 1: Heating/Air Conditioning - Circuit Diagram (1 Of 2)
G06680471Courtesy of AMERICAN HONDA MOTOR CO., INC.

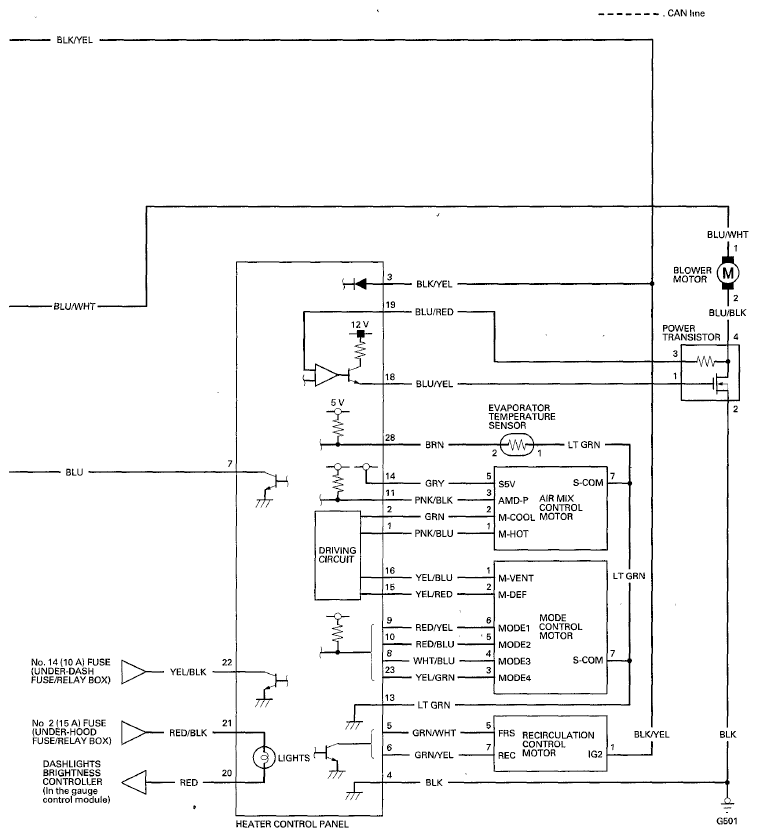

Fig 2: Heating/Air Conditioning - Circuit Diagram (2 Of 2)
G06680472Courtesy of AMERICAN HONDA MOTOR CO., INC.
