Component Location Index

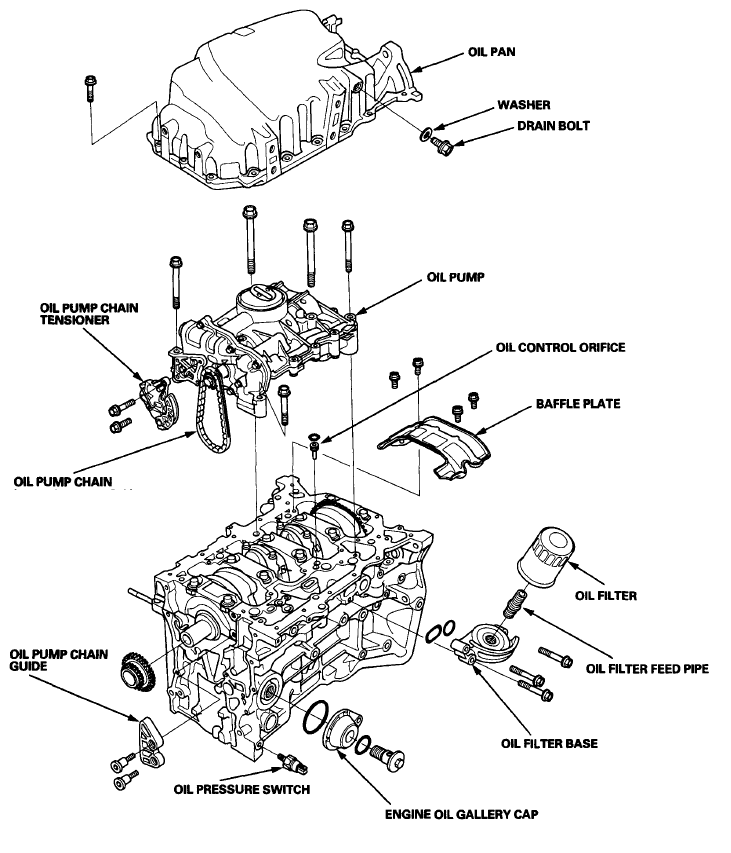

Fig 1: Identifying Engine Lubrication Component Location

G06609539

Courtesy of AMERICAN HONDA MOTOR CO., INC.
