Circuit Diagram

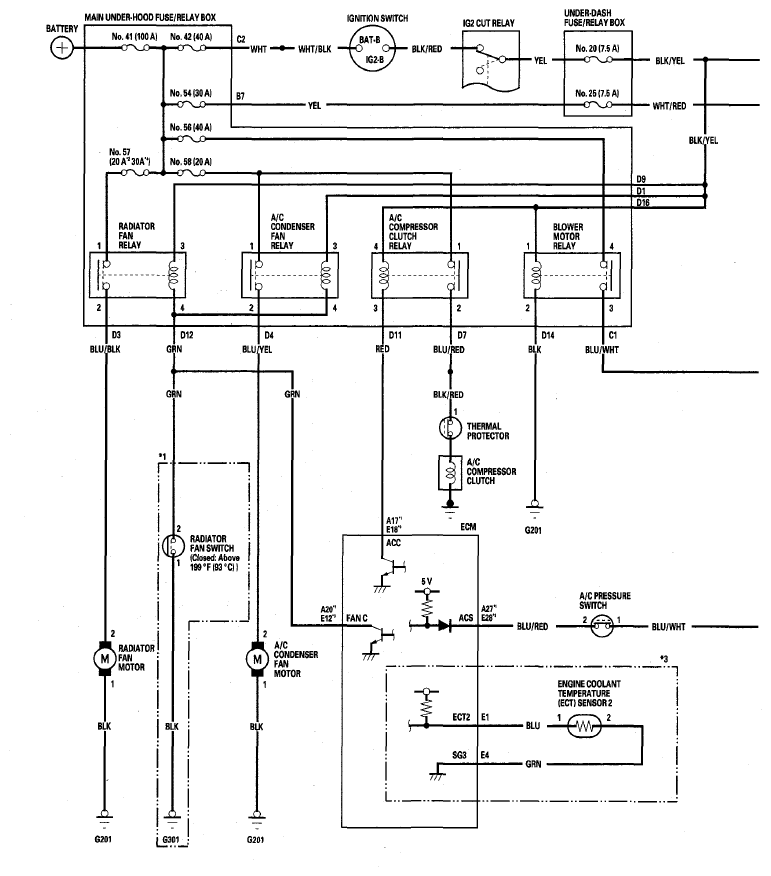

Fig 1: Air Conditioning System - Circuit Diagram (1 Of 2)
G06232220Courtesy of AMERICAN HONDA MOTOR CO., INC.

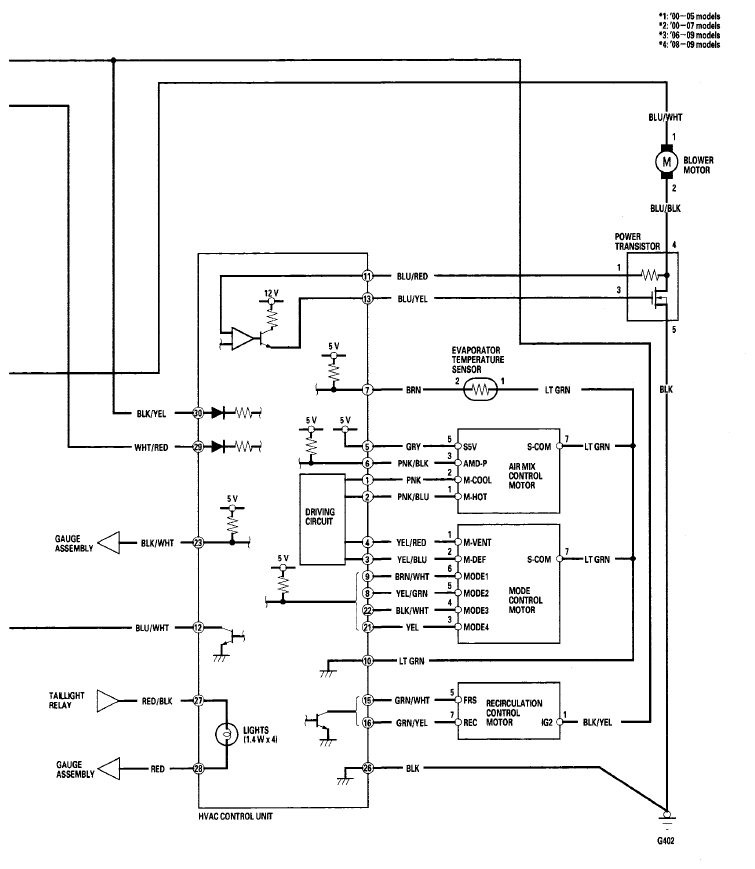

Fig 2: Air Conditioning System - Circuit Diagram (2 Of 2)
G06232221Courtesy of AMERICAN HONDA MOTOR CO., INC.
