Fuel Tank Pressure (FTP) Sensor

The FTP sensor converts fuel tank absolute pressure into an electrical input to the ECM.

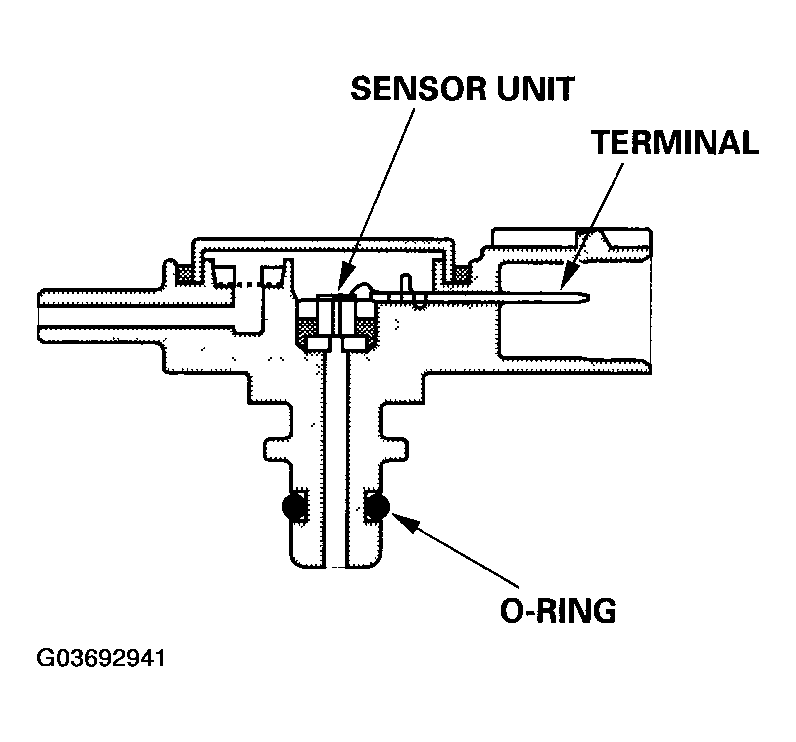

Fig 1: Identifying Fuel Tank Pressure Sensor
G03692941Courtesy of AMERICAN HONDA MOTOR CO., INC.
