ECM Inputs and Outputs at Connector D (17P)

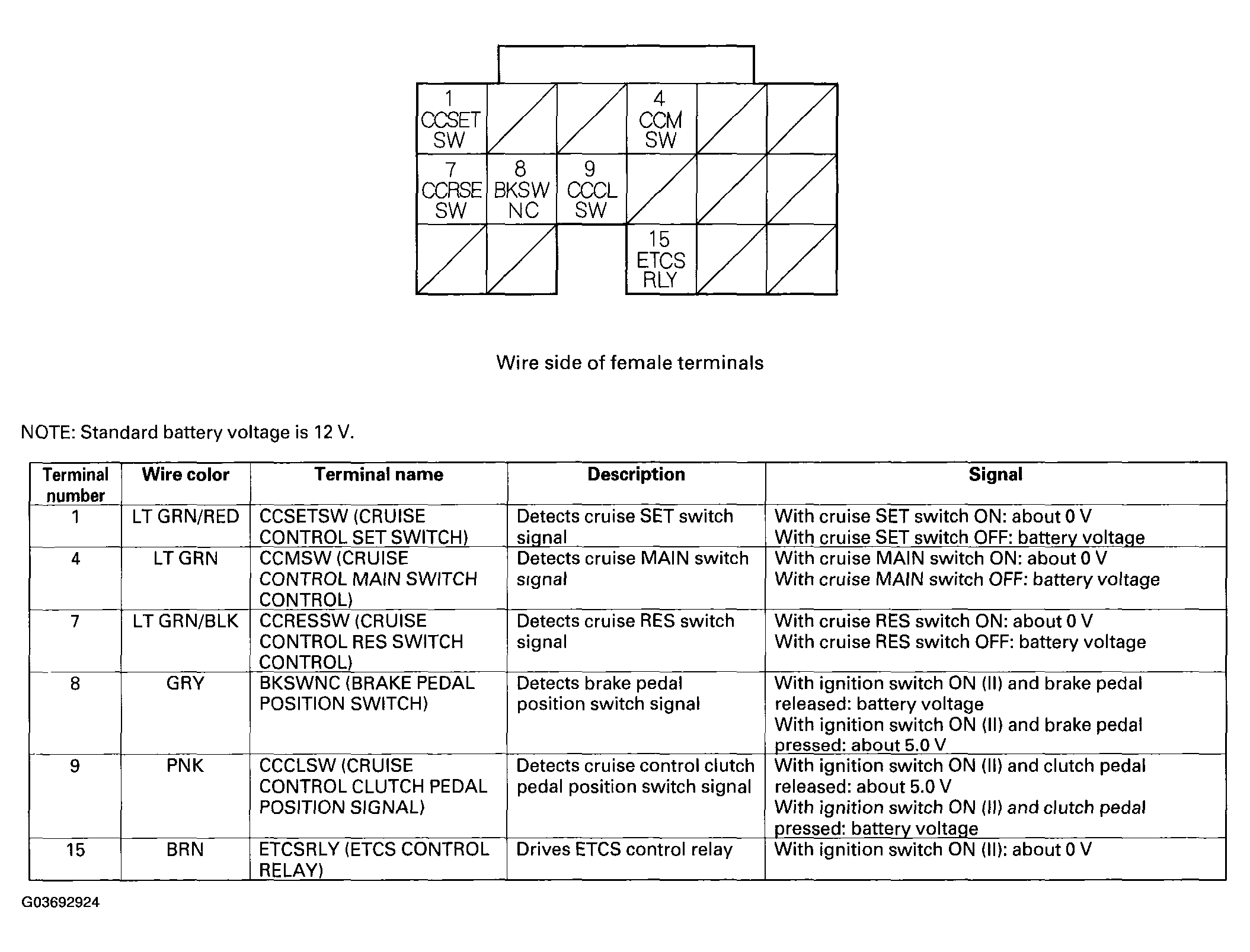

Fig 1: Identifying ECM Inputs And Outputs At Connector D (17P)

G03692924

Courtesy of AMERICAN HONDA MOTOR CO., INC.
