ECM Inputs and Outputs at Connector A (31P)

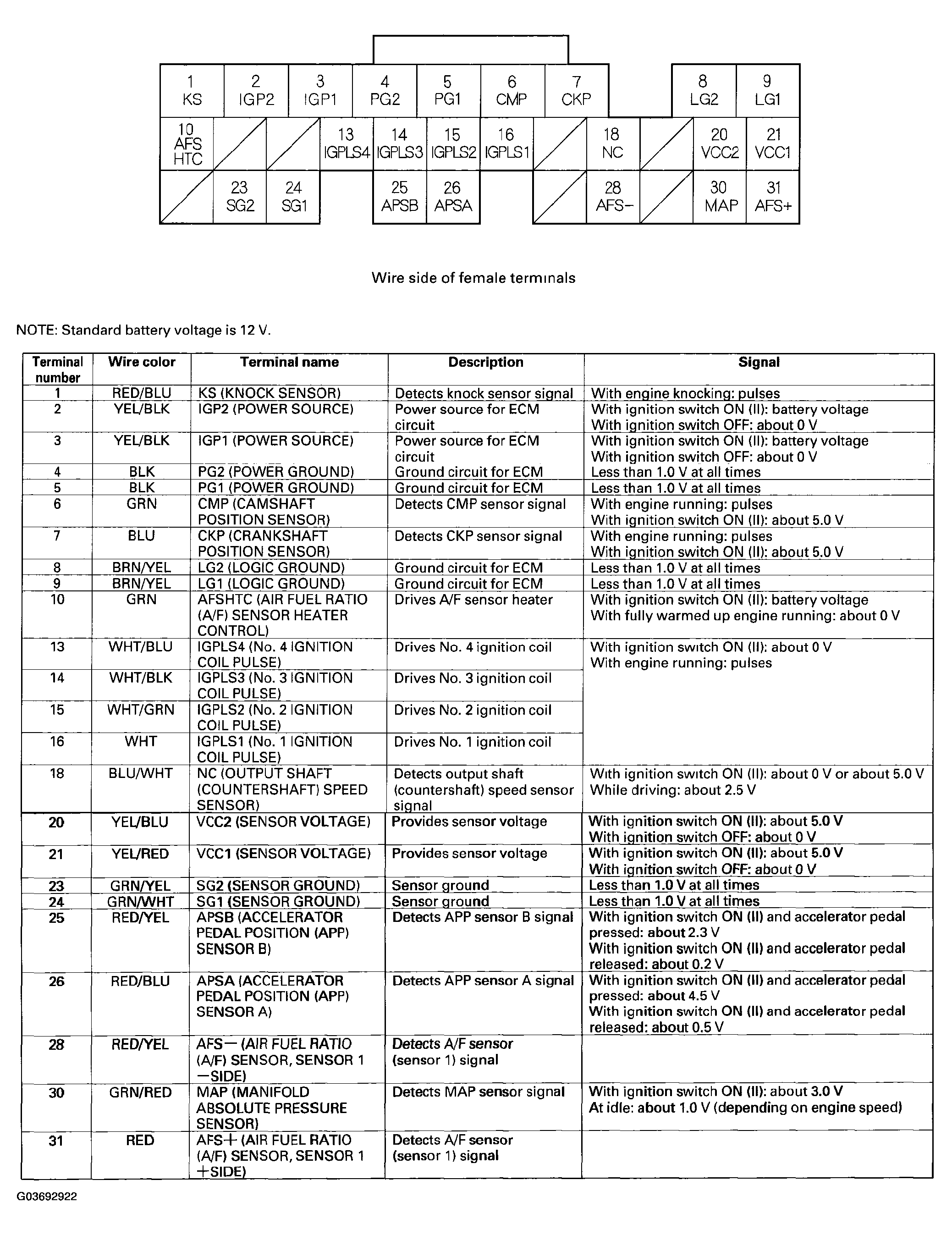

Fig 1: Identifying ECM Inputs And Outputs At Connector A (31P)

G03692922

Courtesy of AMERICAN HONDA MOTOR CO., INC.
