Driver's Power Window Motor Connector End View (View 196)

• GRY
• Driver's door
• On driver's door wire harness

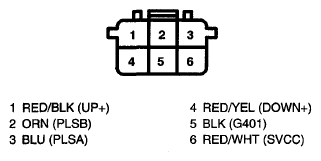

Fig 1: Driver's Power Window Motor Connector Terminal (View 196)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
