DLC Connector End View (View 242)

GRY
Left side of dash
On dashboard wire harness (right branch)

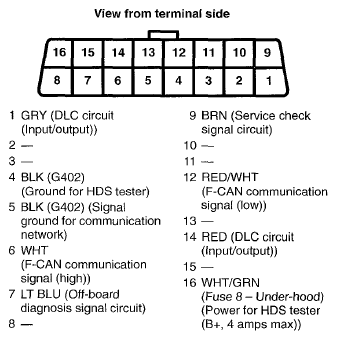

Fig 1: DLC Connector Terminal (View 242)

G07764148

Courtesy of AMERICAN HONDA MOTOR CO., INC.
