Cable Reel Connector End View (View 271)

Connector A

• YEL
• Under left side of dash
• On dashboard wire harness (left branch)

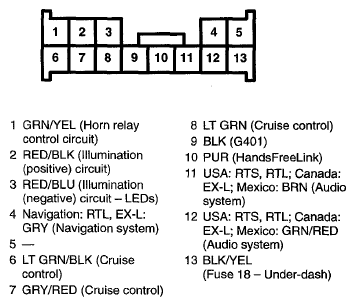

Fig 1: Cable Reel Connector Terminal (View 271)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

• WHT
• Top of steering column
• Connects dashboard wire harness (left branch) to cable reel sub-harness

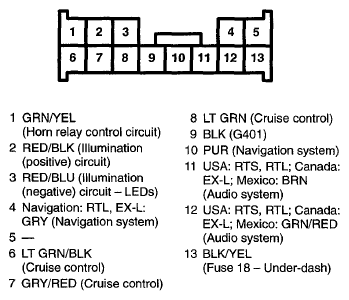

Fig 2: Connector B Terminal (View 271)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C

• WHT
• Steering wheel
• Connects cable reel connector B to cable reel sub-harness

Fig 3: Connector C Terminal (View 271)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
