C603 Connector End View (View 209)

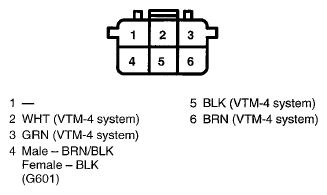

Fig 1: C603 Connector Terminal (View 209)
G07764115Courtesy of AMERICAN HONDA MOTOR CO., INC.
