C451 Connector End View (Junction Connector) (View 249)

• WHT
• Middle of dash
• On dashboard wire harness (left branch)

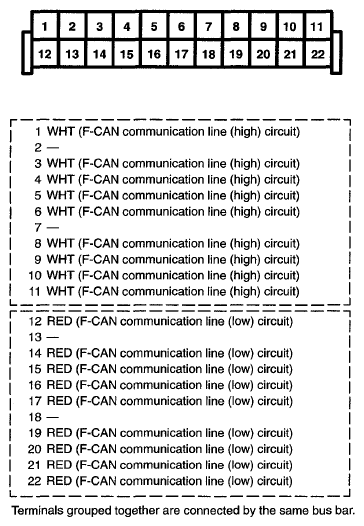

Fig 1: C451 Connector Terminal (Junction Connector) (View 249)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
