Under-dash Fuse/Relay Box (View 379)

Under Left Side of Dash
Connector A (Option Connector)
- N/A

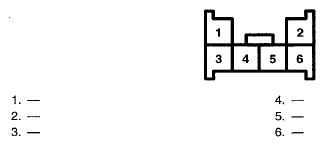

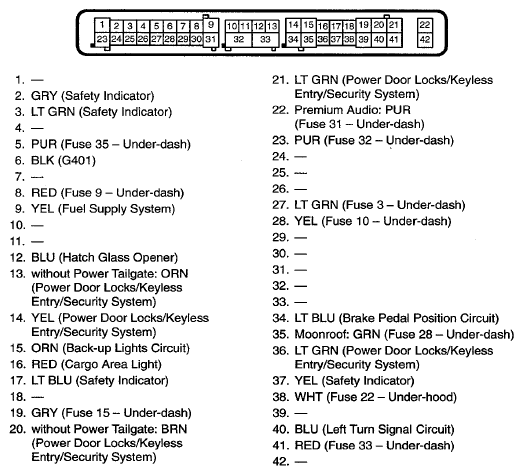

Fig 1: Under-dash Fuse/Relay Box Connector A Terminal (View 379)

Connector B (MES Connector) ('09-'10)
- YEL
- On Dashboard Wire Harness

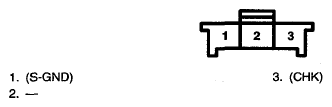

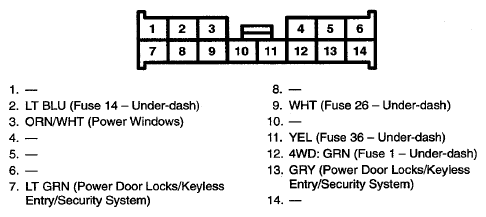

Fig 2: Under-dash Fuse/Relay Box Connector B Terminal (View 379)

Connector C
- WHT
- On Dashboard Wire Harness

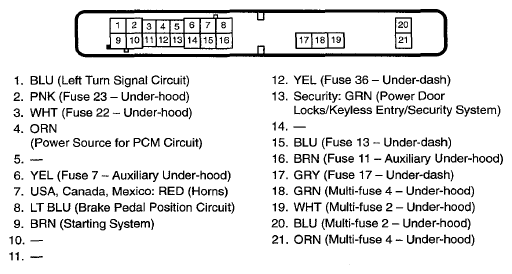

Fig 3: Under-dash Fuse/Relay Box Connector C Terminal (View 379)

Connector D
- WHT
- On Dashboard Wire Harness

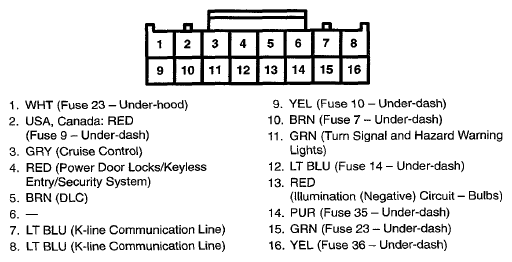

Fig 4: Under-dash Fuse/Relay Box Connector D Terminal (View 379)

Connector E
- LT GRN
- On Right Engine Compartment Wire Harness

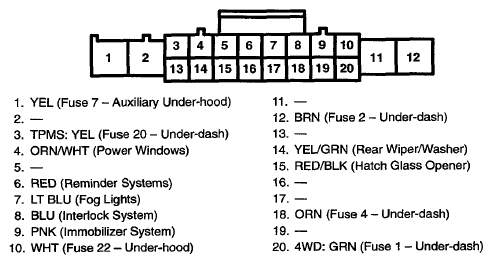

Fig 5: Under-dash Fuse/Relay Box Connector E Terminal (View 379)

Connector F
- WHT
- On Right Engine Compartment Wire Harness

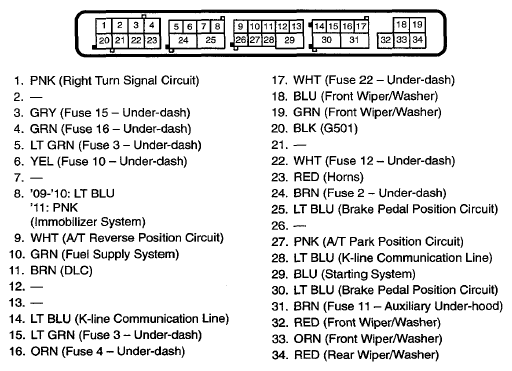

Fig 6: Under-dash Fuse/Relay Box Connector F Terminal (View 379)

Connector G
- BLU
- On Right Engine Compartment Wire Harness

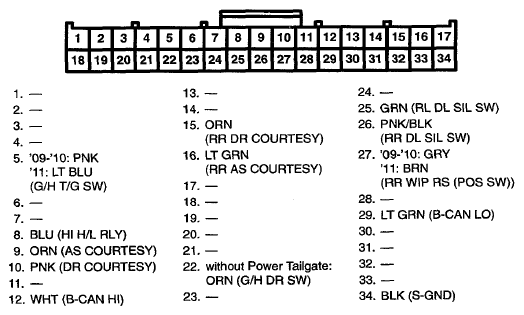

Fig 7: Under-dash Fuse/Relay Box Connector G Terminal (View 379)

Connector H
- N/A

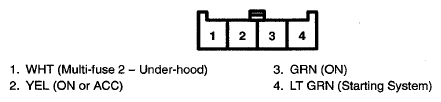

Fig 8: Under-dash Fuse/Relay Box Connector H Terminal (View 379)

Connector J
- YEL
- On Dashboard Wire Harness

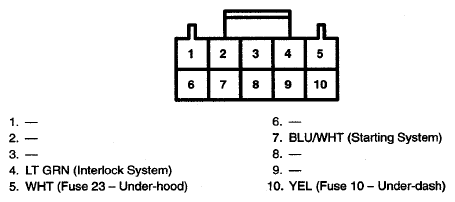

Fig 9: Under-dash Fuse/Relay Box Connector J Terminal (View 379)
- Under Left Side of Dash
Connector K
- WHT
- On Dashboard Wire Harness

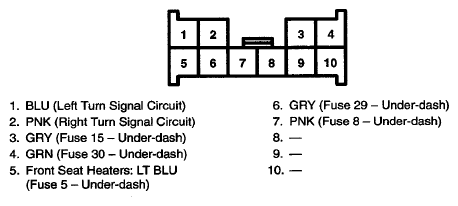

Fig 10: Under-dash Fuse/Relay Box Connector K Terminal (View 379)

Connector M
- WHT
- On Dashboard Wire Harness

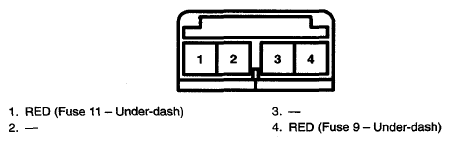

Fig 11: Under-dash Fuse/Relay Box Connector M Terminal (View 379)

Connector N
- WHT
- On Dashboard Wire Harness

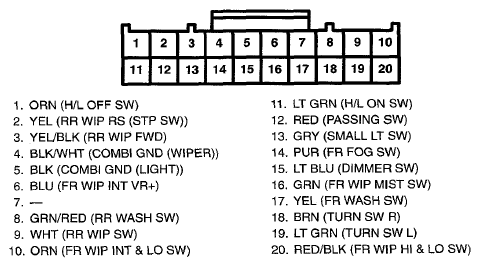

Fig 12: Under-dash Fuse/Relay Box Connector N Terminal (View 379)

Connector P
- WHT
- On Dashboard Wire Harness

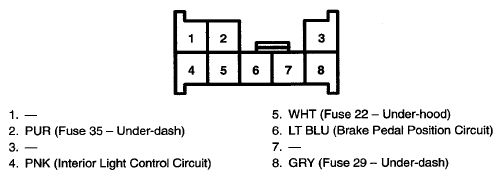

Fig 13: Under-dash Fuse/Relay Box Connector P Terminal (View 379)

Connector Q
- WHT
- On Dashboard Wire Harness
Fig 14: Under-dash Fuse/Relay Box Connector Q Terminal (View 379)

Connector R
- WHT
- On Dashboard Wire Harness
Fig 15: Under-dash Fuse/Relay Box Connector R Terminal (View 379)

Connector S (MICU)
- WHT
- On Dashboard Wire Harness
Fig 16: Under-dash Fuse/Relay Box Connector S Terminal (View 379)

Connector T (MICU)
- WHT
- On Dashboard Wire Harness
Fig 17: Under-dash Fuse/Relay Box Connector T Terminal (View 379)
