Steering Angle Sensor (View 219)

GRN
In Steering Column Cover
On Dashboard Wire Harness

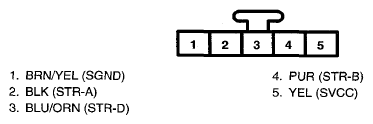

Fig 1: Steering Angle Sensor Connector Terminal (View 219)

G07763095
