Power Tailgate Control Unit (Power Tailgate) (View 372)

Left Side of Cargo Area
On Rear Wire Harness
Connector A
- BRN

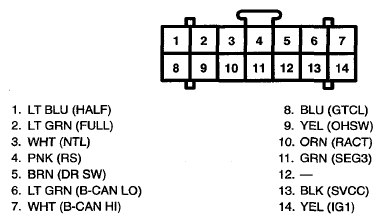

Fig 1: Power Tailgate Control Unit (Power Tailgate) Connector A Terminal (View 372)

Connector B
- LT BLU

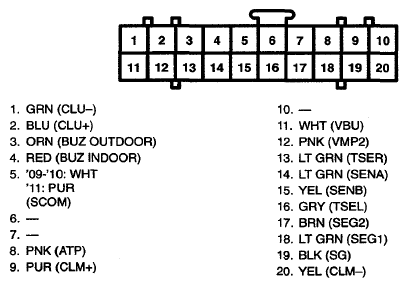

Fig 2: Power Tailgate Control Unit (Power Tailgate) Connector B Terminal (View 372)

Connector C
- LT BLU

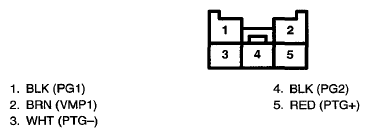

Fig 3: Power Tailgate Control Unit (Power Tailgate) Connector C Terminal (View 372)
