Navigation Display Unit (Navigation) (View 350)
Navigation Display Unit (Navigation) (View 350)
GRY
Middle of Dash
On Dashboard Wire Harness

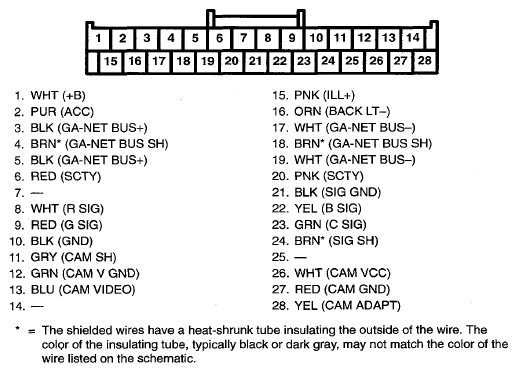

Fig 1: Navigation Display Unit (Navigation) Connector Terminal (View 350)
