MAP Sensor (View 159)

BLK
Middle of Engine
On Engine Wire Harness

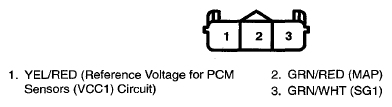

Fig 1: MAP Sensor Connector Terminal (View 159)

G07763034
