Left Front Wheel Speed Sensor (View 75)
Left Front Wheel Speed Sensor (View 75)
ORN
Under Left Front of Engine Compartment
On Left Engine Compartment Wire Harness

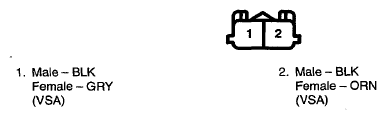

Fig 1: Left Front Wheel Speed Sensor Connector Terminal (View 75)
