Immobilizer-Keyless Control Unit (View 267)
Immobilizer-Keyless Control Unit (View 267)
GRN
In Steering Column Cover
On Dashboard Wire Harness

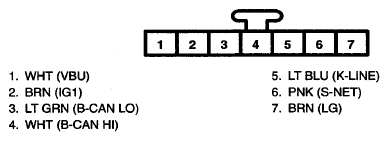

Fig 1: Immobilizer-Keyless Control Unit Connector Terminal (View 267)
