Ignition Key Switch/Key Light (View 243)
Ignition Key Switch/Key Light (View 243)
GRN
In Steering Column Cover
On Dashboard Wire Harness

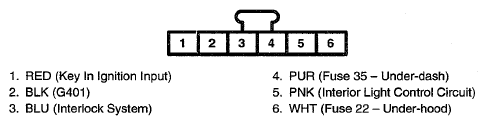

Fig 1: Ignition Key Switch/Key Light Connector Terminal (View 243)
