Front Mode Control Motor (View 265)

GRN
Behind Glove Box
On A/C Wire Harness

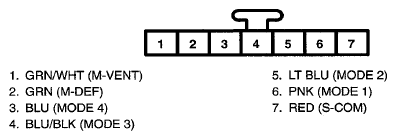

Fig 1: Front Mode Control Motor Connector Terminal (View 265)

G07763142
