Pilot EX, 3.5 3
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector End Views
>>
Front Blower Power Transistor (View 176)
Front Blower Power Transistor (View 176)
NAT
Under Right Side of Dash
On A/C Wire Harness

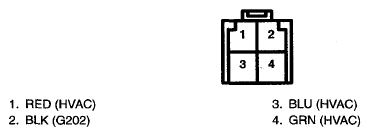

Fig 1: Front Blower Power Transistor Connector Terminal (View 176)
