Engine Mount Control Unit (View 319)
Engine Mount Control Unit (View 319)
GRY
Behind Right Kick Panel
On Right Engine Compartment Wire Harness

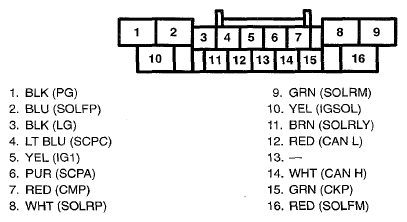

Fig 1: Engine Mount Control Unit Connector Terminal (View 319)
