Cruise Control Combination Switch (View 291)
Cruise Control Combination Switch (View 291)
WHT
Steering Wheel
On Cable Reel Sub-harness

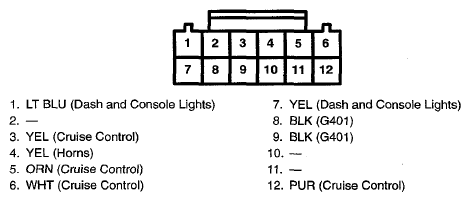

Fig 1: Cruise Control Combination Switch Connector Terminal (View 291)
