Climate Control Unit (Climate Control) (View 360)
Climate Control Unit (Climate Control) (View 360)
GRY
Behind Audio Unit
On Dashboard Wire Harness
Connector A

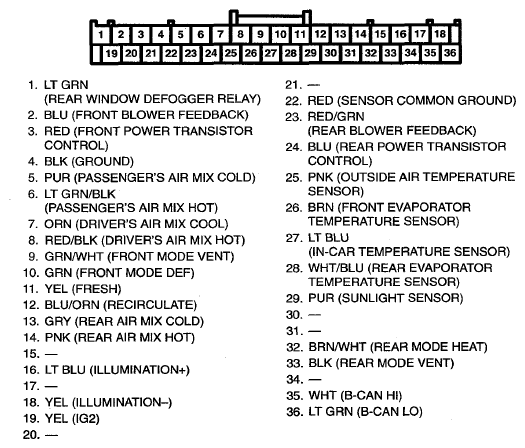

Fig 1: Climate Control Unit (Climate Control) Connector A Terminal (View 360)
Connector B

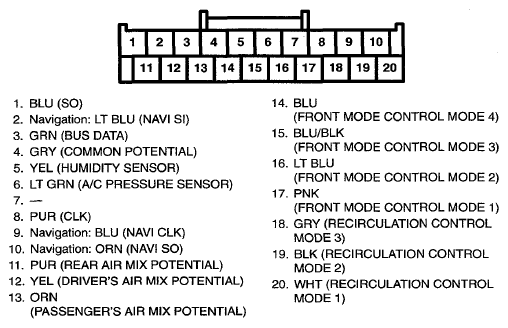

Fig 2: Climate Control Unit (Climate Control) Connector B Terminal (View 360)
