CKP Sensor (View 146)

BLK
Under Middle of Engine
On Engine Wire Harness

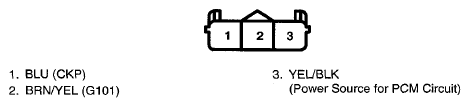

Fig 1: CKP Sensor Connector Terminal (View 146)

G07763021
