Automatic Lighting Control Unit (View 310)
Automatic Lighting Control Unit (View 310)
GRN
Under Left Side of Dash
On Dashboard Wire Harness

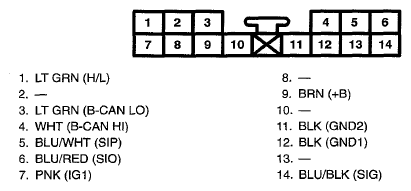

Fig 1: Automatic Lighting Control Unit Connector Terminal (View 310)
